Cast iron ceiling conduiting
Galvanised iron conduiting from mains
Metal Conduits & Accessories IN GALVANISED IRON (GI) AND CAST IRON (MS)
Cast iron (ms) & Galvanised iron (gi) conduits
G.I. Conduit Pipes : They are coated by hot dipped galvanising of iron or steel. In this the pipe is coated with a layer of zinc to protect them from corrosion or rusting.
This coating ensures safety and a finish to the conduit which is durable in industrial installations, coastal line atmosphere & thermal power stations.
M.S. Conduit Pipes: They have an inner and outer surfaces treatment with a black coat of paint that help them protect from rusting.
Our range of fittings in cast iron and galvanised iron
GI Ball Socket
They are used to hang light fixtures via a threaded pipe section from a ceiling.
It can be used to hold upto a fixture upto 10 feet from the ceiling.
GI Check Nuts
They are used to tighten the conduit and to further lock it to ensure a secure fit.
They are available in sizes starting at 19mm to 50mm
GI Base Saddle
A saddle is used to fix or mount the conduit wiring network with a solid surface so that the setup remains intact in its place.
It is recommended to fix saddles every 150mm to ensure a secure installation.
We have saddles starting from the standard thickness. We also have heavy duty and extra heavy duty saddles available.
They are available in sizes starting from 12mm upto 50mm.
Available in 2mm,4mm and 6mm thickness

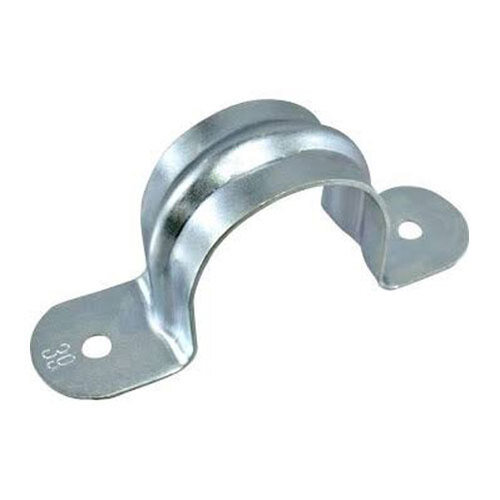

Galvanised Iron (GI) Saddle Clamp
A saddle is used to fix or mount the conduit wiring network with a solid surface so that the setup remains intact in its place.
It is recommended to fix saddles every 150mm to ensure a secure installation.
We have saddles starting from the standard thickness. We also have heavy duty and extra heavy duty saddles available.
They are available in sizes starting from 12mm upto 50mm.
Galvanised Iron (GI) Coupling
It allows you to extend a conduit line by joining two conduits.
Our Pipes come with pre-fitted with threaded couplers on one end and additional can be procured to customise the line as per your needs.
These are available in sizes starting from 19mm to 50mm.
They are available in Threading type (ET) and Pin type (PG).
Galvanised Iron (GI) Inspection Bend
A bend is a type of conduit fitting that changes the direction of the pipe by 90 ° in a concealed wiring system.
It gently changes direction to allow easy pulling of electrical wires during concealed wiring.
Can be used in installations that generally demand some amount of maintenance I.e. industries, commercial spaces, etc.
The bend can be screwed open to check the line and then closed with minimal effort.
It a very smart choice as it makes maintenance a simple task both on cost and time fronts.
These are available in sizes starting from 19mm to 50mm
They are available in Threading type (ET) and Pin type (PG)
Galvanised Iron (GI) Deep Junction Box
Junction boxes can be used to create connection points and provide mounting support for bulb holders and ceiling roses.
Apart from that, they facilitate the reconfiguration by providing the passage to pull the wires in the concealed wiring system.
There are two types of junction boxes: deep junction boxes and junction boxes.
A deep junction box has a larger enclosure space, which is why they are preferred for concealed slab wiring.
These are available in sizes starting from 19mm to 50mm.
They are available in Threading type (ET) and Pin type (PG)
Galvanised Iron (GI) Surface Junction Box
Junction boxes can be used to create connection points and provide mounting support for bulb holders and ceiling roses.
Apart from that, they facilitate the reconfiguration by providing the passage to pull the wires in the concealed wiring system.
There are two types of junction boxes: deep junction boxes and junction boxes.
S
urface junction boxes are preferred for open wiring.
These are available in sizes starting from 19mm to 50mm.
They are available in Threading type (ET) and Pin type (PG)
Cast Iron (MS) Coupler
It allows you to extend a conduit line by joining two conduits.
Our Pipes come with pre-fitted with threaded couplers on one end and additional can be procured to customise the line as per your needs.
These are available in sizes starting from 19mm to 50mm.
They are available in Threading type (ET) and Pin type (PG).
Cast Iron (MS) Inspection Bend
A bend is a type of conduit fitting that changes the direction of the pipe by 90 ° in a concealed wiring system.
It gently changes direction to allow easy pulling of electrical wires during concealed wiring.
Can be used in installations that generally demand some amount of maintenance I.e. industries, commercial spaces, etc.
The bend can be screwed open to check the line and then closed with minimal effort.
It a very smart choice as it makes maintenance a simple task both on cost and time fronts.
These are available in sizes starting from 19mm to 50mm
They are available in Threading type (ET) and Pin type (PG)
Cast Iron (MS) Long Bend
A bend is a type of conduit fitting that changes the direction of the pipe by 90 ° in a concealed wiring system.
It gently changes direction to allow easy pulling of electrical wires during concealed wiring
These are available in sizes starting from 19mm to 50mm
They are available in Threading type (ET) and Pin type (PG)
Cast Iron (MS) Surface Junction Boxes and Deep Junction Boxes
Junction boxes can be used to create connection points and provide mounting support for bulb holders and ceiling roses.
Apart from that, they facilitate the reconfiguration by providing the passage to pull the wires in the concealed wiring system.
There are two types of junction boxes: deep junction boxes and junction boxes.
A deep junction box has a larger enclosure space, which is why they are preferred for concealed slab wiring.
While the surface junction boxes are preferred for open wiring.
These are available in sizes starting from 19mm to 50mm.
They are available in Threading type (ET) and Pin type (PG)
Galvanised Iron (GI) Spacer Bar
Spacers Bars are used to hold multiple conduits passing through using clamps. A spacer can hold from a single conduit to 4 conduits on a single spacer. It is recommended to install the spacers ever 150mm to ensure secure hold and optimal load distribution.

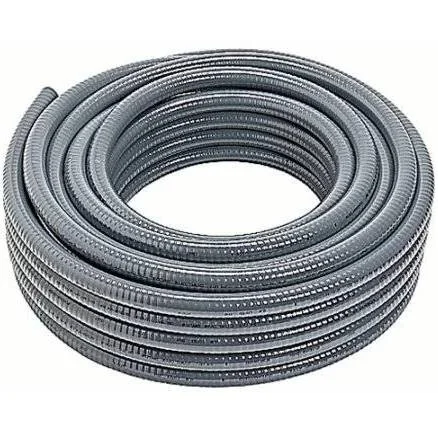

Galvanised Iron (GI) Flexible Conduit
Galvanised Iron Flexible are made from Galvanized steel, helical wound strips having a Square Lock type Construction with zinc coating with spiral corrugated pattern finished surface.
Mostly used as low pressure hose in Industrial domestic air Conditioning,Ventilation systems and as mechanical protection for insulated electrical cables & wires which may be exposed to atmospheric conditions.
Galvanised Iron (GI) Nipple
They are used to connect a conduit in the same way as coupler.
They are used to attach threading type accessories.
They are available in standard lengths as well as upto 6 inches.
MS (Cast Iron) and GI ( Galvanised Iron) fittings and conduits for electrical installations are available with us. These are the particular recommendations by the Indian Building Code. We carry the brands BEC, Bharat and Gupta and have a selection of house brands available as well.
